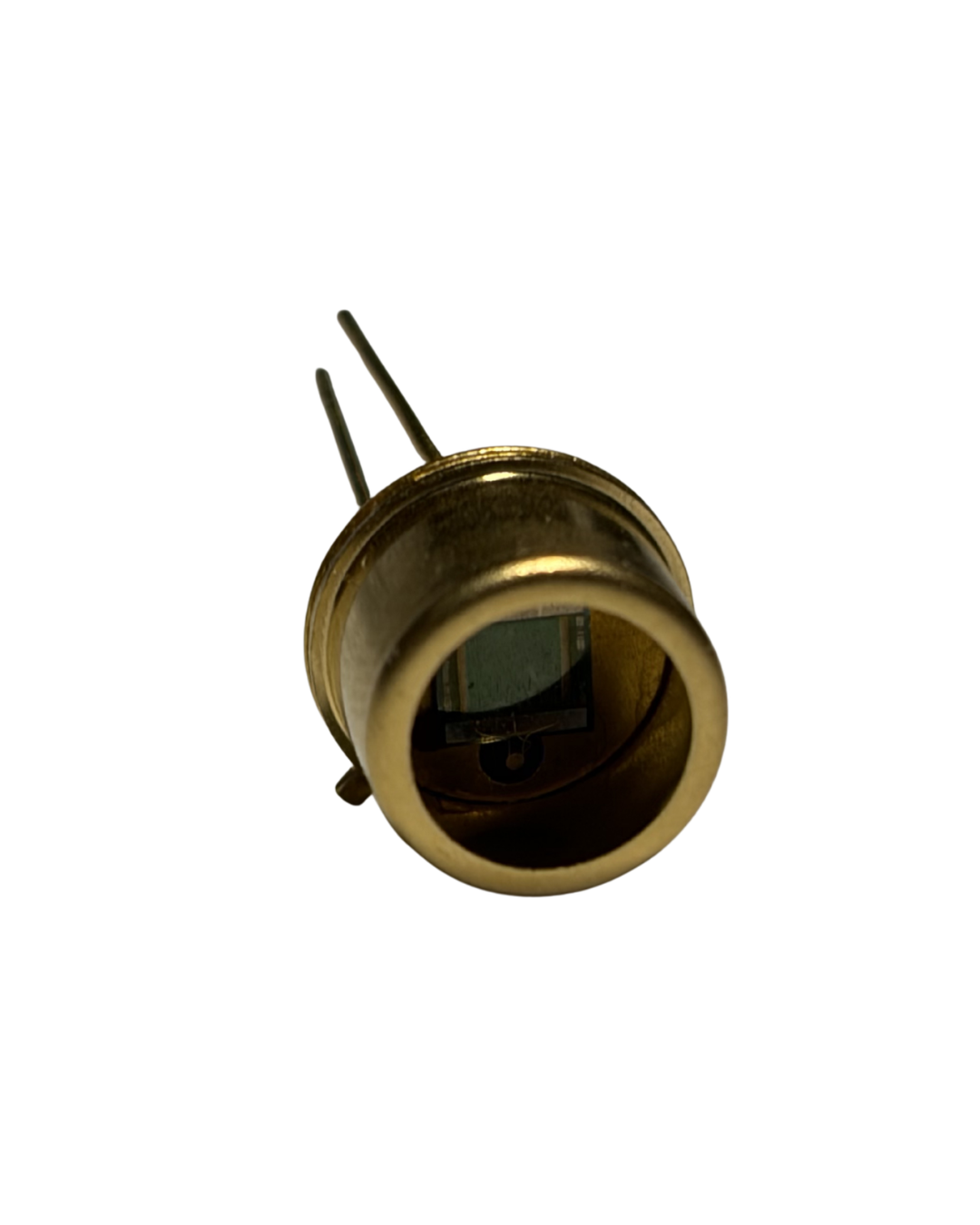

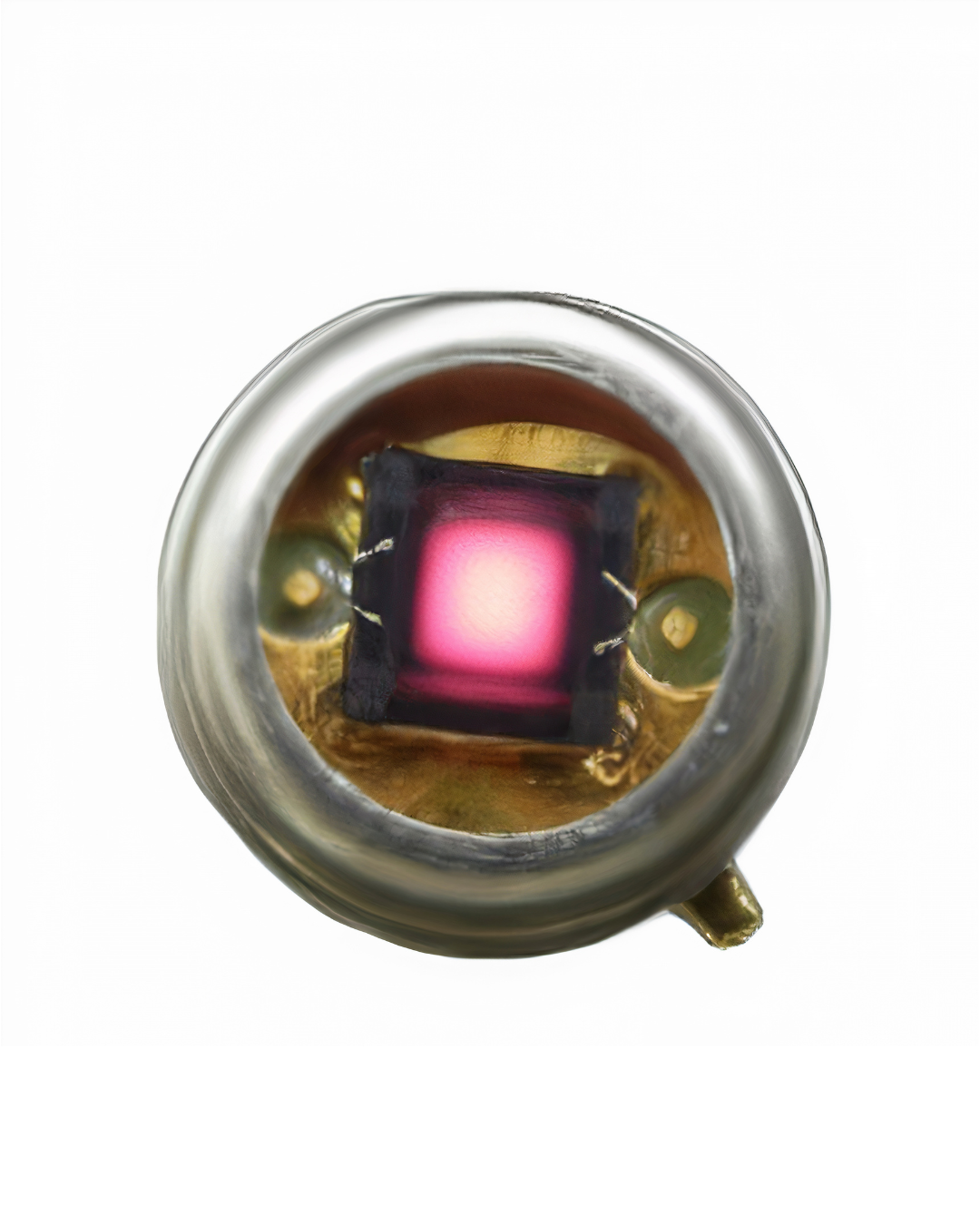

IR-70

IR-70

  • Stable properties (minimal resistance drift)
  • Optical Output Efficiency
  • Wide spectral output
  • Fast response
  • High pulse rate and high modulation depth
  • High efficiency - low power consumption
  • Long life and cost effective
  • Customized packaging / optic solutions (cap/reflector/window)

Review the "Product Variations" section below to select the option that works best for you: standard, standard with a parabolic reflector, or standard with an elliptical reflector.

$75.00 USD
$75.00 USD
Sale Sold out
View full details

Product Variations
IR-70
IR Source IR-70
HeaderTO-39
Voltage (V)5
Power (W)0.65
Max Temperature (°C)850
Typical Life50,000 Hours
EmissionPeak
Reflector TypeNone
CapYes
IR-70/NC
IR Source IR-70
HeaderTO-39
Voltage (V)5
Power (W)0.65
Max Temperature (°C)850
Typical Life50,000 Hours
EmissionPeak
CapNo
IR-70-P-05-1
IR Source IR-70
HeaderTO-39
Voltage (V)5
Power (W)0.65
Max Temperature (°C)850
Typical Life50,000 Hours
EmissionPeak
Reflector TypeParabolic
Reflector Diameter0.5" (12.7 mm)
Reflector Length0.621" (15.8 mm)
Reflector Part #IR-RMC474
CapN/A
Window* Available
IR-70-P-05-2
IR Source IR-70
HeaderTO-39
Voltage (V)5
Power (W)0.65
Max Temperature (°C)850
Typical Life50,000 Hours
EmissionPeak
Reflector TypeParabolic
Reflector Diameter0.400" (10.2 mm)
Reflector Length0.335" (8.5 mm)
Reflector Part #IR-RMC477
CapN/A
Window* Available
