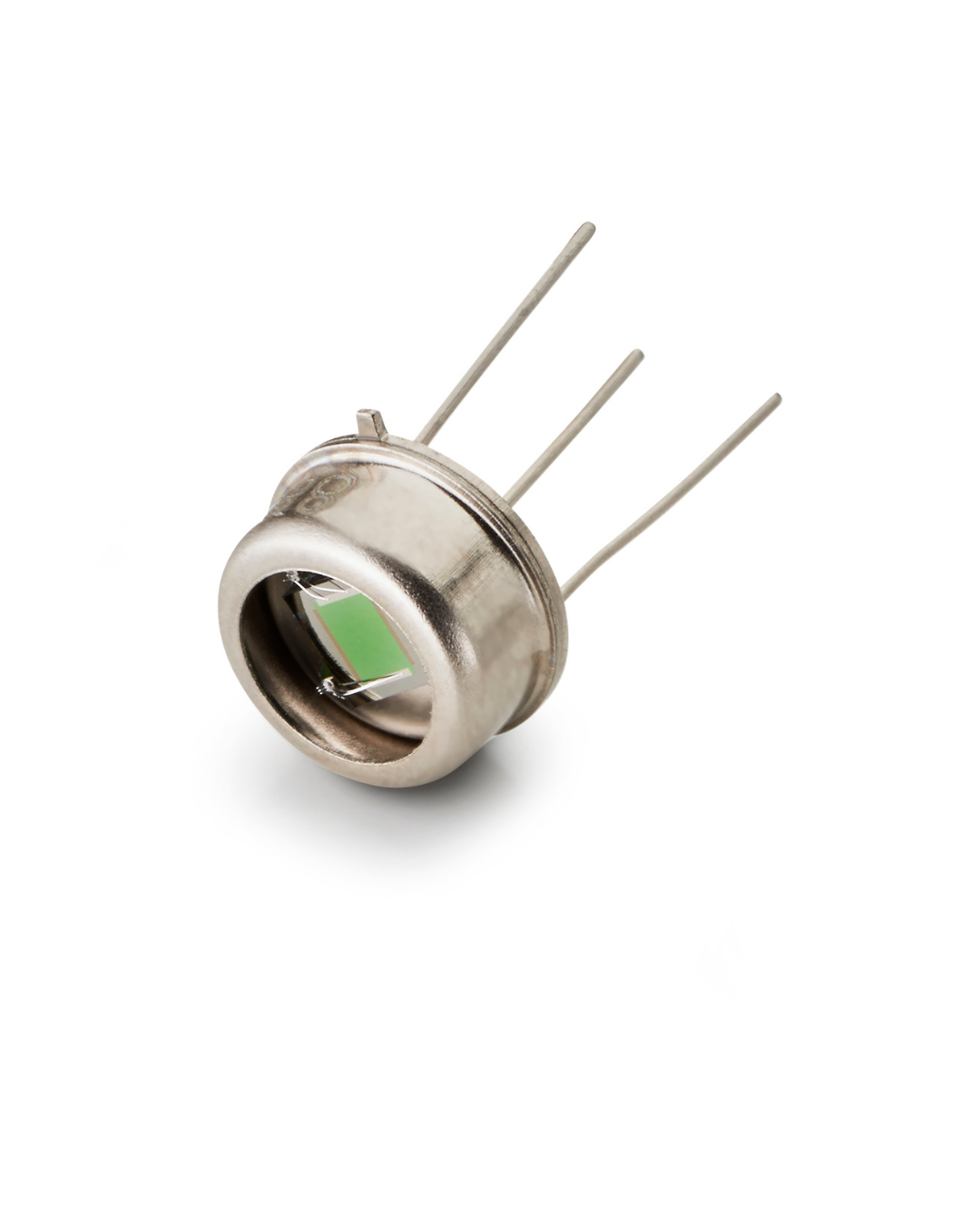

IR-50

IR-50

  • Stable properties (minimal resistance drift)
  • Optical Output Efficiency
  • Wide spectral output
  • Fast response
  • High pulse rate and high modulation depth
  • High efficiency - low power consumption
  • Long life and cost effective
  • Customized packaging / optic solutions (cap/reflector/window)

Review the "Product Variations" section below to select the option that works best for you: standard, standard with a parabolic reflector, or standard with an elliptical reflector.

$65.00 USD
$65.00 USD
Sale Sold out
View full details

Product Variations
IR-50
IR Source IR-50
HeaderTO-5
Voltage (V)6
Power (W)0.7
Max Temperature (°C)650
Typical Life50,000 Hours
EmissionPeak
CapYes
IR-50NC
IR Source IR-50
HeaderTO-5
Voltage (V)6
Power (W)0.7
Max Temperature (°C)650
Typical Life50,000 Hours
EmissionPeak
CapNo
IR-50-P-05-1
IR Source IR-50
HeaderTO-5
Voltage (V)6
Power (W)0.7
Max Temperature (°C)650
Typical Life50,000 Hours
EmissionPeak
Reflector TypeParabolic
Reflector Diameter0.5" (12.7 mm)
Reflector Length0.646" (16.4 mm)
Reflector Part #IR-RMC300
CapNo
Window* Available
IR-50-P-05-2
IR Source IR-50
HeaderTO-5
Voltage (V)6
Power (W)0.7
Max Temperature (°C)650
Typical Life50,000 Hours
EmissionPeak
Reflector TypeParabolic
Reflector Diameter0.400" (10.2 mm)
Reflector Length0.360" (9.1 mm)
Reflector Part #IR-RMC305
CapNo
Window* Available
