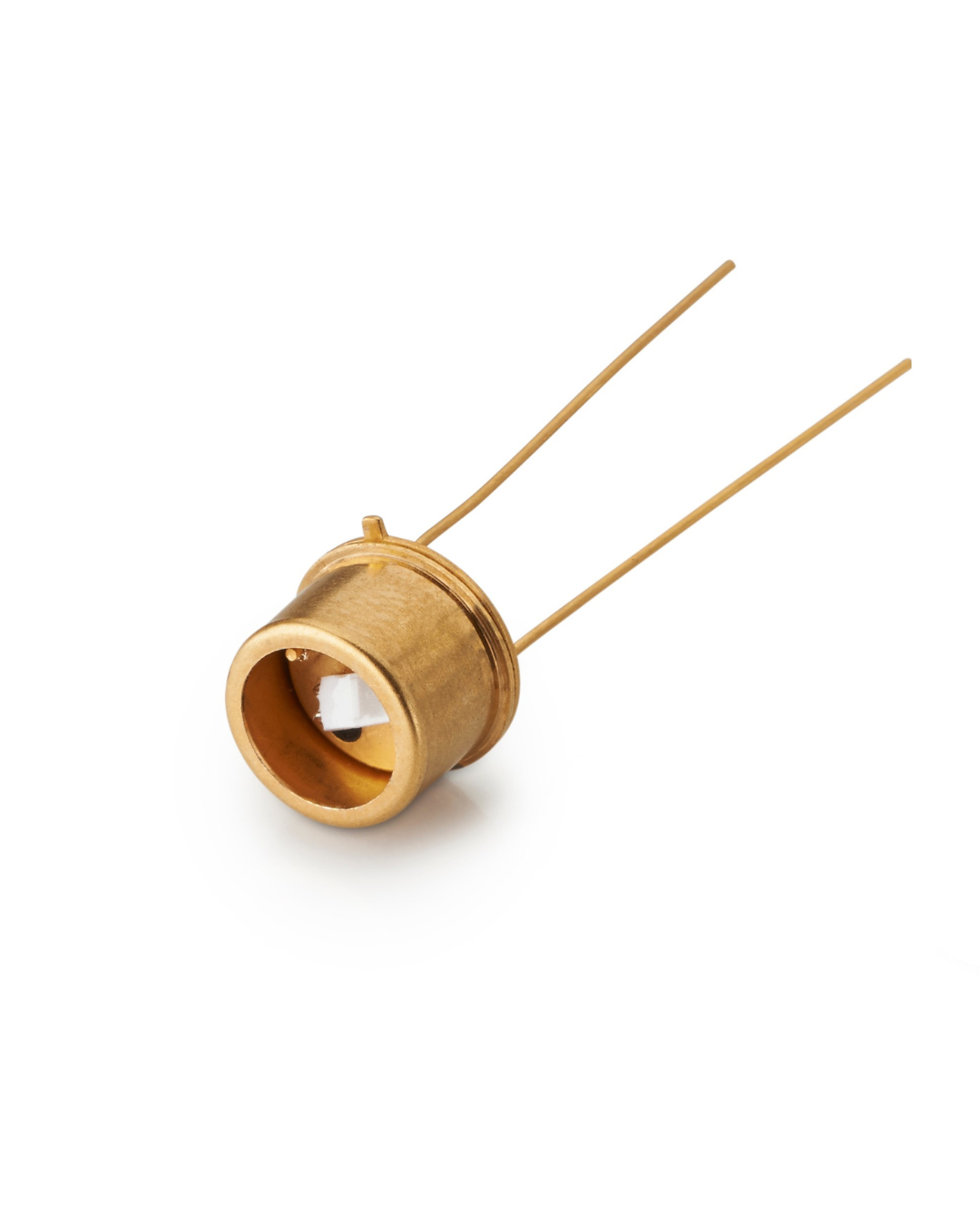

IR-43

IR-43

  • One of the best Sellers due to its' stable performance
  • Rugged and Reliable
  • Long Term Stability and Long Life
  • Thin Film Laser Trimmed
  • Does not require operation in a sealed atmosphere
  • Can be mounted on a circuit board, alternative mounting available

Review the "Product Variations" section below to select the option that works best for you: standard, standard with a parabolic reflector, or standard with an elliptical reflector.

$50.00 USD
$50.00 USD
Sale Sold out
View full details

Product Variations
IR-43
IR Source IR-43
HeaderTO-5
Voltage (V)14
Power (W)1.3
Max Temperature (°C)600
Typical Life80,000 Hours
EmissionPeak
Reflector TypeNone
CapYes
IR-43-P-05
IR Source IR-43
HeaderTO-5
Voltage (V)14
Power (W)1.3
Max Temperature (°C)600
Typical Life80,000 Hours
EmissionPeak
Reflector TypeParobolic
Reflector Diameter0.5" (12.7 mm)
Reflector Length0.646" (16.4 mm)
Reflector Part #IR-RMC485
CapN/A
Window* Available
IR-43-E-05
IR Source IR-43
HeaderTO-5
Voltage (V)14
Power (W)1.3
Max Temperature (°C)600
Typical Life80,000 Hours
EmissionPeak
Reflector TypeElliptical
Reflector Diameter0.5" (12.7 mm)
Reflector Length1.1" (24.2 mm)
Reflector Part #IR-RMC486
CapN/A
Window* Available
