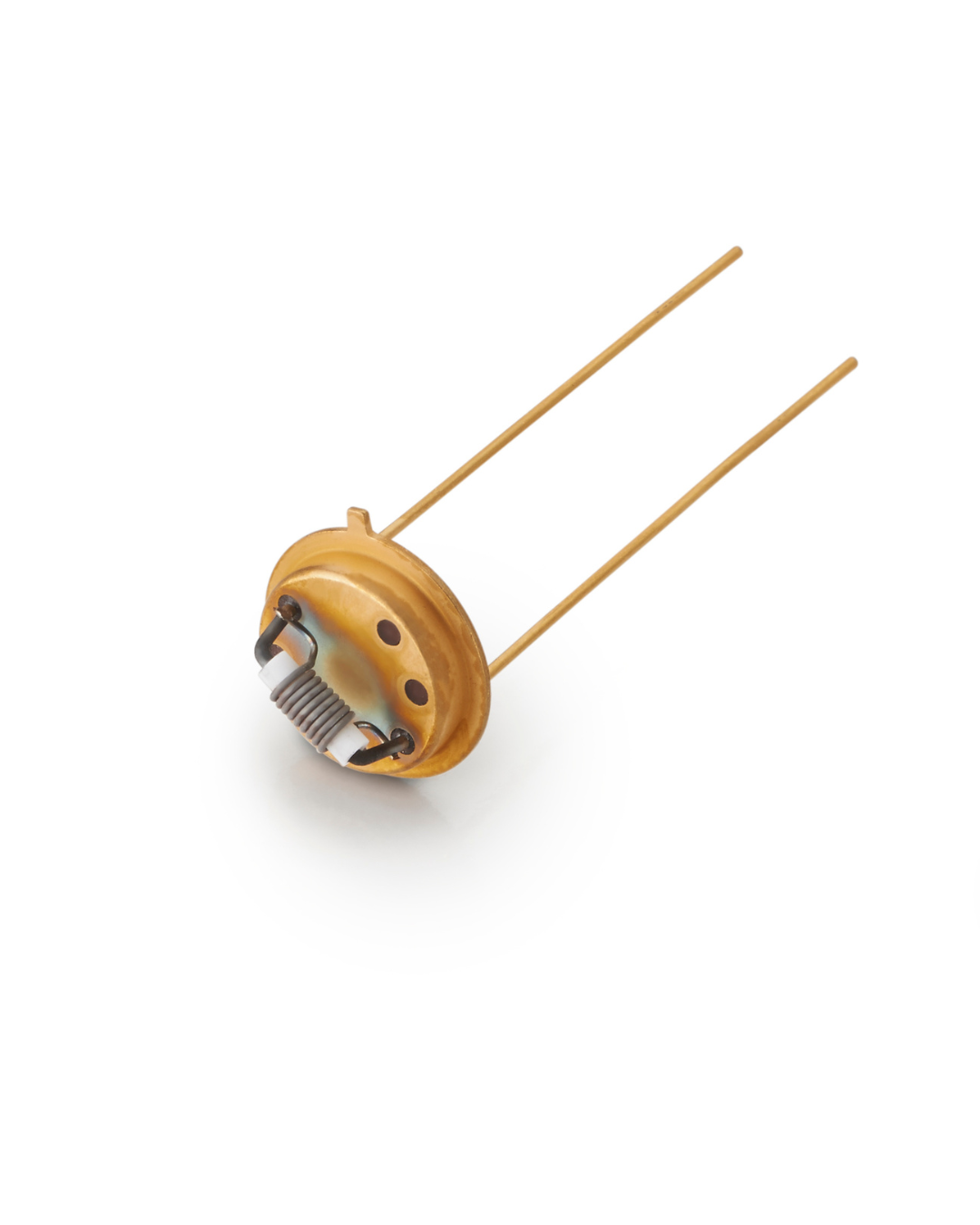

IR-30/NC

IR-30/NC

  • Rugged and Reliable
  • Long Life, Stable Properties
  • Supported, Coil Wound
  • Does not require operation in a sealed atmosphere
  • Can be mounted on a circuit board, alternative mounting available
  • Available mounted vertically or horizontally
  • Available on large or small base

Review the "Product Variations" section below to select the option that works best for you: standard, standard with a parabolic reflector, or standard with an elliptical reflector.

$75.00 USD
$75.00 USD
Sale Sold out
View full details

Product Variations
IR-30/NC
IR Source IR-30/NC
Voltage (V)2.3
Power (W)4.4
Max Temperature (°C)900
Typical Life50,000 Hours
CapNo

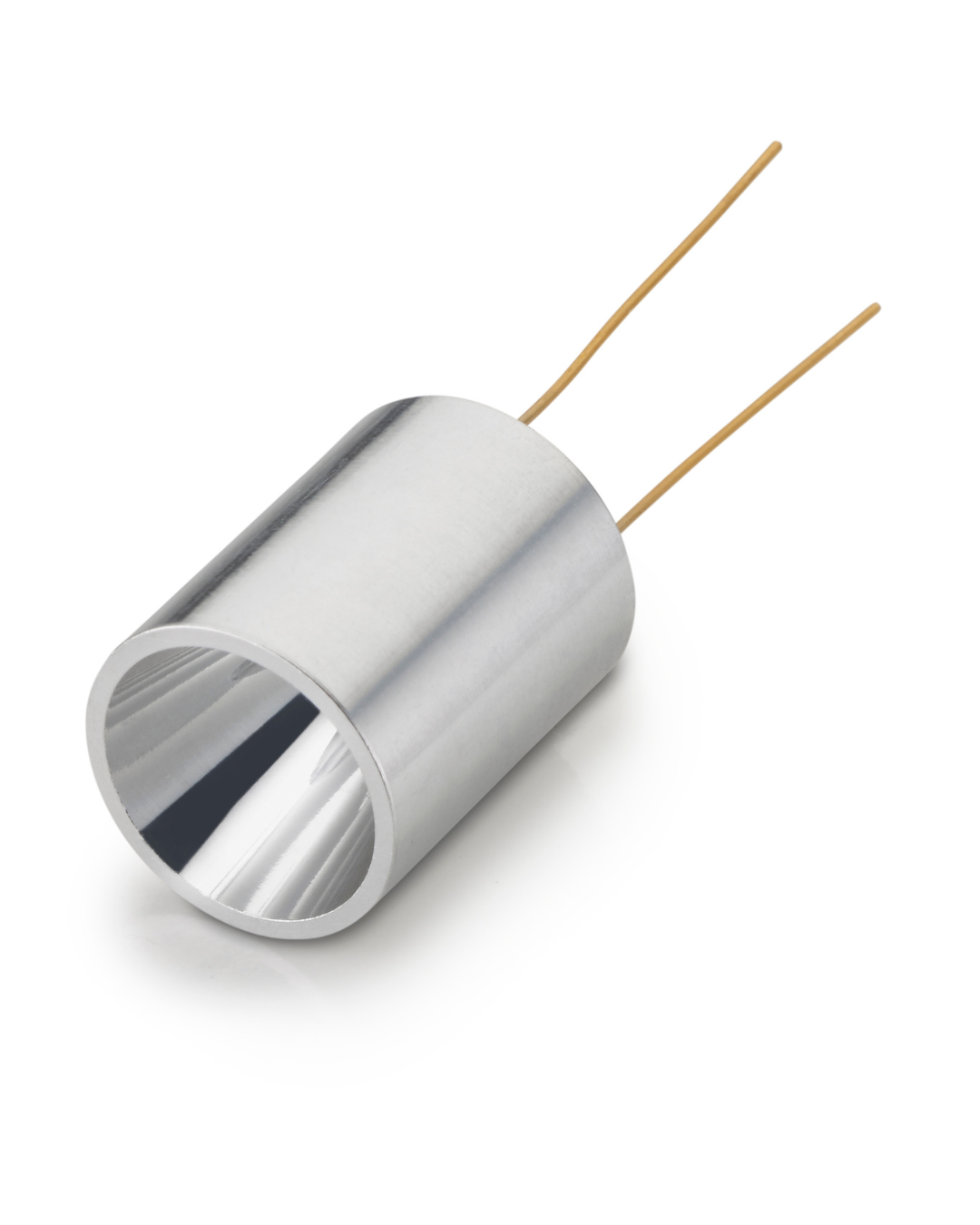

IR-30-P-05
IR Source IR-30/NC
Voltage (V)2.3
Power (W)4.4
Max Temperature (°C)900
Typical Life50,000 Hours
Reflector TypeParabolic
Reflector Diameter0.5” (12.7 mm)
Reflector Length0.646" (16.4 mm)
Reflector Part #IR-RMC393
CapN/A
Window* Available
IR-30-E-05
IR Source IR-30/NC
Voltage (V)2.3
Power (W)4.4
Max Temperature (°C)900
Typical Life50,000 Hours
Reflector TypeElliptical
Reflector Diameter0.5" (12.7 mm)
Reflector Length1.1" (24.2 mm)
Reflector Part #IR-RMC233.5
CapN/A
Window* Available
