IR-12

IR-12

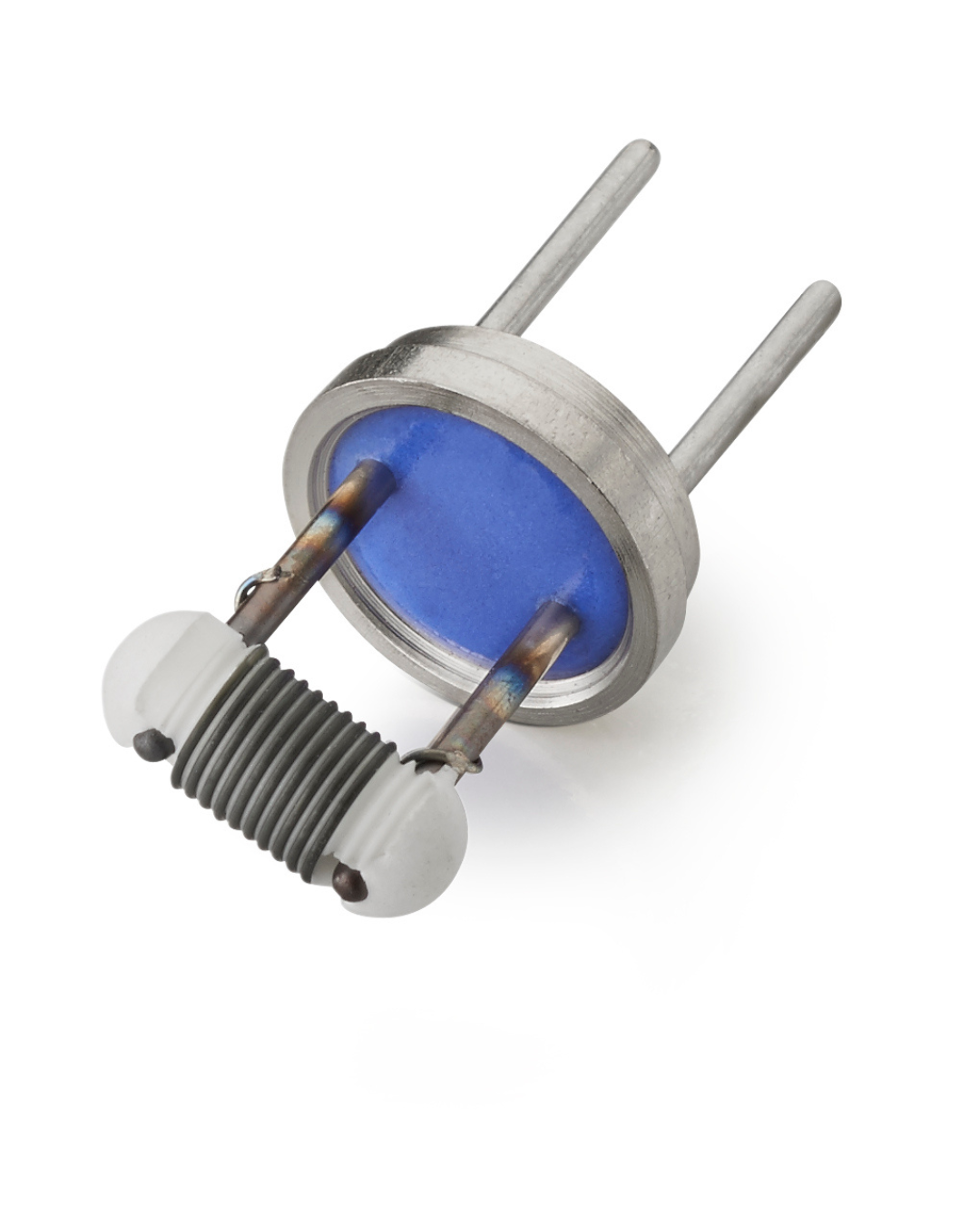

The IR-12 is a thermal emitter appropriate for use in laboratory and field instrumentation due to its long life and stable properties.

  • Rugged and Reliable
  • Long Life, Stable Properties
  • Supported, Coil Wound
  • Does not require operation in a sealed atmosphere
  • Can be mounted on a circuit board, alternative mounting available

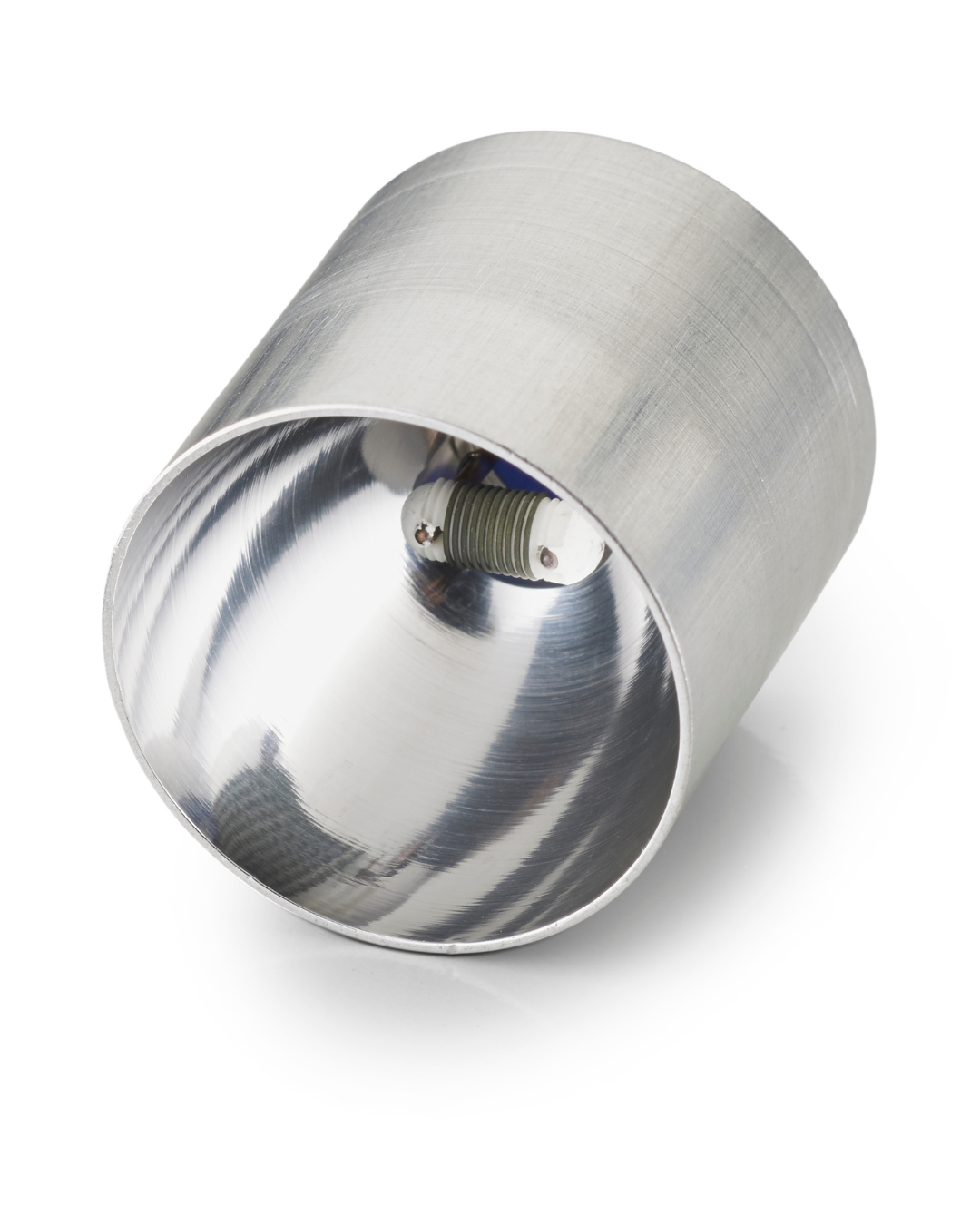

To achieve increased on-axis optical power, or to target a particular wavelength, the IR-12 can be supplied with a reflector, a window or with both.

Review the "Product Variations" section below to select the option that works best for you: standard, standard with a parabolic reflector, or standard with an elliptical reflector.

$75.00 USD
$75.00 USD
Sale Sold out
View full details

Product Variations
IR-12
IR Source IR-12
Voltage (V)5
Power (W)10
Max Temperature (°C)900
Typical Life70,000 Hours
Reflector TypeNone
IR-12-P-1
IR Source IR-12
Voltage (V)5
Power (W)10
Max Temperature (°C)900
Typical Life70,000 Hours
Reflector TypeParabolic
Reflector Diameter1” (25.4 mm)
Reflector Length1" (25.4 mm)
Reflector Part #IR-RMC234
Window* Available
IR-12-E-1
IR Source IR-12
Voltage (V)5
Power (W)10
Max Temperature (°C)900
Typical Life70,000 Hours
Reflector TypeElliptical
Reflector Diameter1" (25.4 mm)
Reflector Length1" (25.4 mm)
Reflector Part #IR-RMC233
Window* Available
